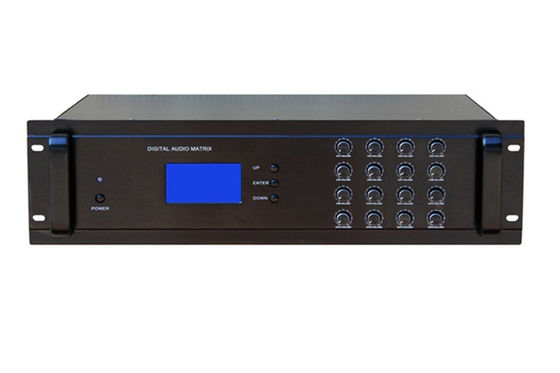

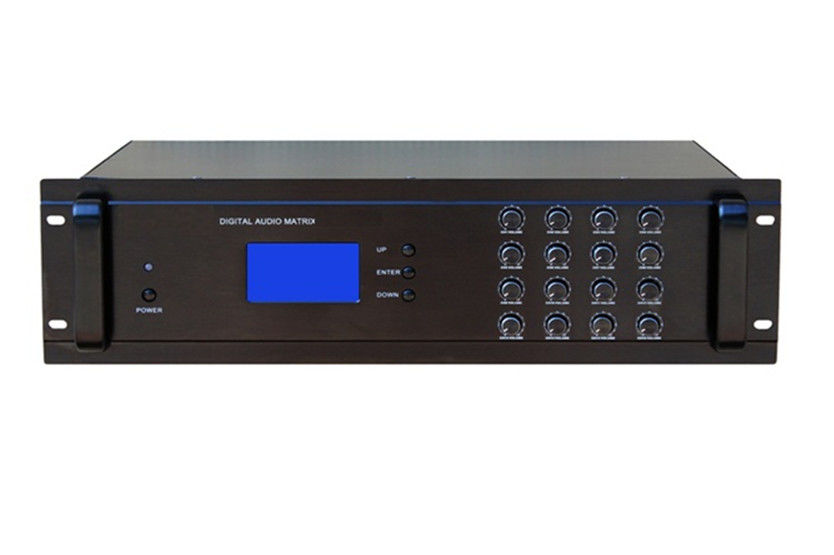

FTD AC110V 50Hz Audio Control Matrix Amp 16 Inputs And 16 Outputs

Large Image : FTD AC110V 50Hz Audio Control Matrix Amp 16 Inputs And 16 Outputs

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	FTD
Certification:	CE，ROHS
Model Number:	FTD-16MX

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	$ 433~476
Packaging Details:	carton
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

FTD AC110V 50Hz Audio Control Matrix Amp 16 Inputs And 16 Outputs

Description

Model Number:

FTD-16MX

Color:

Black

Brand Name:

FTD

Weight:

8.5kg

Highlight:

AC110V Audio Matrix Controller

50Hz audio control matrix amp AC110V

audio control matrix 16 inputs and 16 outputs FTD

Audio Matrix Controller For Public Address System

Features:

Public address system classic cost-effective medium to big-scale sound system intelligent controller.
Ideal PA sound system controller for school, shopping mall, hotel, and intelligent office etc.
All in one intelligent PA sound system include 16 channel audio matrix, Mp3 player & USB, 16 zone remote paging system, fire alarm & voice evacuation system interface, weekly scheduled timer and power sequencer.
16 Channel audio matrix controller with 16 channel inputs and 16 outputs.
Zone capacity expandable to 128 zones by cascaded 8 unit together, master controller and 7 units slave controllers.
All in one intelligent PA System controller built in 16 channel audio matrix, weekly timer, 16 zone speaker selector, Mp3 player, remote 16 zone paging controller, fire alarm and voice evacuation system interface and programmable power sequencer.

Specification:

Model	FTD-16MX
Description	Intelligent 16 Channel Audio Matrix Controller
Channel	16 channel inputs and 16 channel outputs
Max Capacity	128 zones by cascaded 8 units together
Call Station Input	Call station input 1-5, RJ45 port, 10kΩ, 10V, balanced
Input	Line 1-16: 10kΩ, 330mV, unbalanced RCA input EMC1: 10kΩ, 330mV, unbalanced
Output	Line 1-16: 10kΩ, 330mV, unbalanced RCA output EMC1: 10kΩ, 0.775mV, 0dB, unbalanced
Alarm	Alarm input: 0V, closed circuit contact Alarm output, 0V, closed circuit contact
Display	128×64 LCD display in English
Frequency Response	60-16KHz (±3dB)
Control	16 zone output volume controls Menu buttons: up, enter & down ID dip switch Master or slave dip switch
Protection	AC fuse 0.5A, 1PCS
Power Consumption	20W
Power Supply	AC 230V or 110V, 50-60Hz
Dimension	484(W)×390(D)×133(H)mm
Net Weight	7.1kg
Packaging	520(W)×455(D)×185(H)mm
Gross Weight	8.5kg
