Product Details:
|
| Product Name: | 5" Compact Line Array Speaker System | Power Handling Capacity: | Continuous Pink Noise: 200 W, Continuous Program: 600 W |
|---|---|---|---|
| Rated Impedance: | 8 Ω | Crossover Frequency: | 4 KHz |
| Dimensions: | 408 (W) × 546 (H) × 342 (D) Mm | Weight: | 16 Kg |
| High Light: | 4kHz line array column speakers,line array pa system wearproof,5in column array speakers |
||

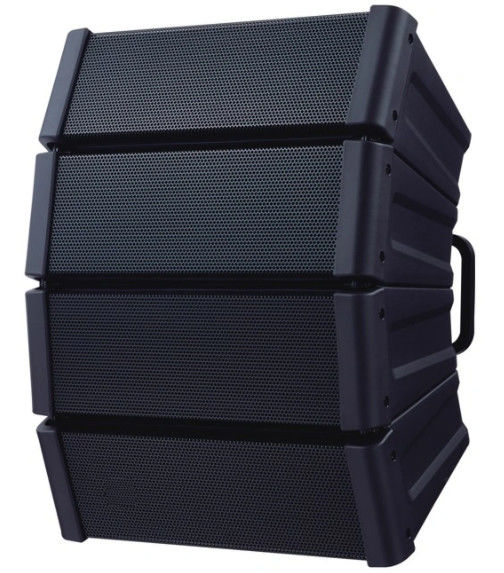

5＂ Compact Line Array Speaker System
Description:
The FAS-200 is a 5" 2-way compact line array speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. Its rated power of 200W and max power output at 600W. The combination is flexible from tender to tender, each set is 4 loudspeakers combined together, so different dispersion angle is easily directed. The durable ABS material permits of indoor performance of years. The hanging mounting or speaker stand fixing way are possible. There are also 100V/70V matching transformer are optional to be added. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. Black or white two color options. The2 way compact line array speaker is really first choice for stadium and conventional center indoor sound reinforcement system.
Features
Specification
| Model | FAS-200 |
| Description | 5" Compact Line Array Speaker System |
| Power Handling Capacity | Continuous pink noise: 200 W, Continuous program: 600 W |
| Rated Impedance | 8 Ω |
| Sensitivity (1 W, 1 m) | 96 dB (60° mode), 97 dB (45° mode), 98 dB (30° mode), 99 dB (15° mode) |
| Frequency Response | 70 Hz - 20 kHz (-10 dB) (60%%d mode), 75 Hz - 20 kHz (-10 dB) (45%%d mode), |
| 80 Hz - 20 kHz (-10 dB) (30%%d mode), 85 Hz - 20 kHz (-10 dB) (15%%d mode) | |
| Crossover Frequency | 4 kHz |
| Directivity Angle | Horizontal: 100° (2 kHz or more) |
| Vertical: 60° (800 Hz or more), 45° (1.2 kHz or more), 30° (1.6 kHz or more), | |
| 15° (3.2 kHz or more) variable | |
| Speaker Component | Low frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12 |
| Input Terminal | Speakon NL4MP × 2 and M4 screw terminal |
| Finish | Enclosure: Polypropylene, black |
| Punched net: Surface-treated steel plate, black | |

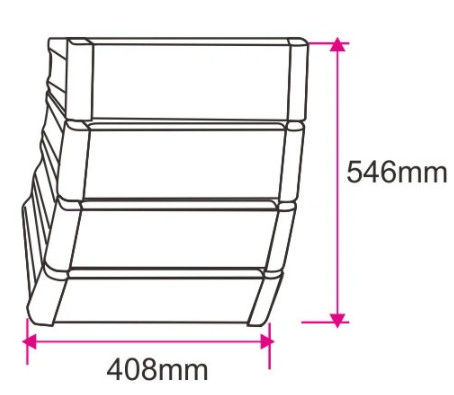

| Dimensions | 408 (W) × 546 (H) × 342 (D) mm |
| Weight | 16 kg |
| Accessory | Hanging bracket …2, Hex. wrench …1 |
| Option | Matching transformer optional |
| Speaker mounting bracket optional | |
| Speaker stand optional |
Factory
FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 12 months for speaker.
4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.
6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
