16 Channel Pa Mixing Amplifiers PA Audio Controller 830W With RJ45 Port

16 Channel Pa Mixing Amplifiers PA Audio Controller 830W With RJ45 Port
16 Channel Pa Mixing Amplifiers PA Audio Controller 830W With RJ45 Port 16 Channel Pa Mixing Amplifiers PA Audio Controller 830W With RJ45 Port 16 Channel Pa Mixing Amplifiers PA Audio Controller 830W With RJ45 Port

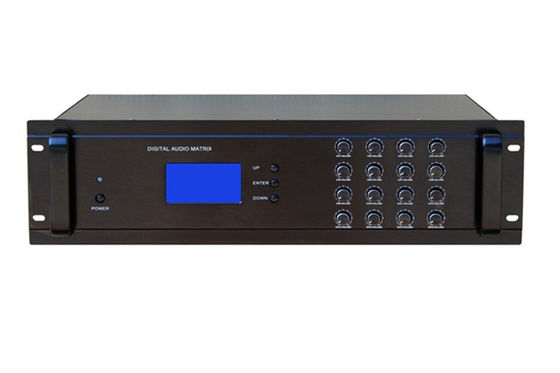

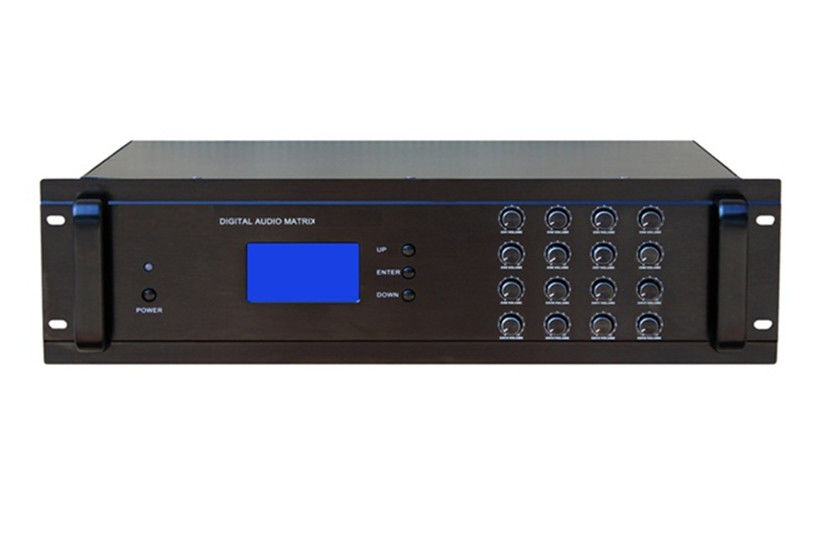

Large Image :  16 Channel Pa Mixing Amplifiers PA Audio Controller 830W With RJ45 Port

Product Details:
Place of Origin: Guangzhou China
Brand Name: FTD
Certification: CE，ROHS
Model Number: FTD-16MX
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: $ 473~478
Packaging Details: carton
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 1000 Piece/Pieces per Month
Contact Now

16 Channel Pa Mixing Amplifiers PA Audio Controller 830W With RJ45 Port

Description
Shell Material: Aluminum The Body Material: Metal
Color: Black Size: 484mm*390mm*133mm
Storage: 830W Weight: 8.5kg
Highlight:

16 channel pa mixing amplifier

,

PA audio controller 830W

,

pa mixing amplifiers RJ45

Mixer Amplifier Pa System Public Address Controller Audio





Product Description
Model
FTD-16MX
Description
Intelligent 16 Channel Audio Matrix Controller
Channel
16 channel inputs and 16 channel outputs
Max Capacity
128 zones by cascaded 8 units together
Call Station Input

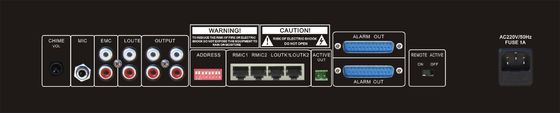

Call station input 1-5, RJ45 port, 10kΩ, 10V, balanced
Input
Line 1-16: 10kΩ, 330mV, unbalanced RCA input.EMC1: 10kΩ, 330mV, unbalanced
Output
Line 1-16: 10kΩ, 330mV, unbalanced RCA output ,EMC1: 10kΩ, 0.775mV, 0dB, unbalanced
Alarm
Alarm input: 0V, closed circuit contact Alarm output, 0V, closed circuit contact
Display
128×64 LCD display in English
Frequency Response
60-16KHz (±3dB)
Control
16 zone output volume controls Menu buttons: up, enter & down
Protection
AC fuse 0.5A, 1PCS
Power Consumption
20W
Power Supply
AC 230V or 110V, 50-60Hz
Dimension
484(W)×390(D)×133(H)mm
Net Weight
7.1kg
Packaging
520(W)×455(D)×185(H)mm
Gross Weight
8.5kg





Product usage introduction



All in one intelligent PA sound system include 16 channel audio matrix, Mp3 player & USB, 16 zone remote paging system, fire alarm & voice evacuation system interface, weekly scheduled timer and power sequencer. 16 Channel audio matrix controller with 16 channel inputs and 16 outputs.

Zone capacity expandable to 128 zones by cascaded 8 unit together, master controller and 7 units slave controllers. All in one intelligent PA System controller built in 16 channel audio matrix, weekly timer, 16 zone speaker selector, Mp3 player, remote 16 zone paging controller, fire alarm and voice evacuation system interface and programmable power sequencer.
