19in Rack Mount PA System Amplifier 350W Power Amplifier For School

19in Rack Mount PA System Amplifier 350W Power Amplifier For School
19in Rack Mount PA System Amplifier 350W Power Amplifier For School 19in Rack Mount PA System Amplifier 350W Power Amplifier For School 19in Rack Mount PA System Amplifier 350W Power Amplifier For School

Large Image :  19in Rack Mount PA System Amplifier 350W Power Amplifier For School

Product Details:
Place of Origin: China
Brand Name: FTD
Certification: CE, RoHS & ISO9001
Model Number: FA-350EC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/month
Contact Now

19in Rack Mount PA System Amplifier 350W Power Amplifier For School

Description
Description: Public Address System 350W Mixer Amplifier Rated Power Output: 350W
Frequency Response: 60-15KHz S/N Ratio: Line: 85 DB , MIC: >72 DB
Protection: High Temp, Short Circuit, Overload Protection Power Consumption: 450W
Dimension: 484(W)×366(D)×88(H)mm Gross Weight: 11.9kg
Highlight:

19in rack PA System Amplifier

,

School 350W Power Amplifier

,

350W Pa Power Amplifier

350W Economy Pa Power Amplifier Mixer Amplifier For School





19in Rack Mount PA System Amplifier 350W Power Amplifier For School 0





Description:



The Public Address (PA) Mixer Amplifier is suitable for school, super market, bank, hotel BGM and speech use.

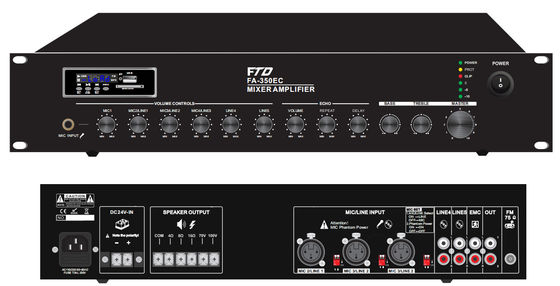

It is integrate pre amplifier, Mp3 player and mixer power amplifier into one 19” 2U height unit of tabletop design, which is economy but of high reliable performance..

The rack size mixer amplifier rated power out at 60W-500w. Its speaker outputs with 100V, 70V and 4‐16ohms for
versatile connections.

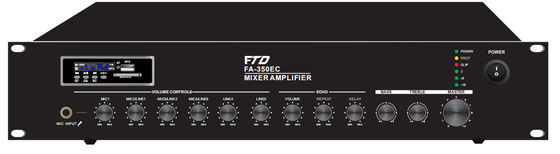

It integrates three microphone and two line inputs. Mic1 VOX with priority. Microphone1 on front panel by phone jack, microphone2‐3 on rear panel by phone jack, line 1‐2 on rear panel by RCA inputs. Microphone1‐3 & Line1‐2 inputs volume control on front panel with bass and treble tone control.

The amplifier is design with complete protection of overload, short circuit and high temp to avoid any damage.





Features



1.Desktop or 19” rack mount public address amplifier
2.PA amplifier with Mp3 player, FM radio & blue tooth
3.Rate power output at 60W, 120W, 240W, 350W to 500W
4.Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms
5.Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
6.LED indicators for power, clip, protect and signal

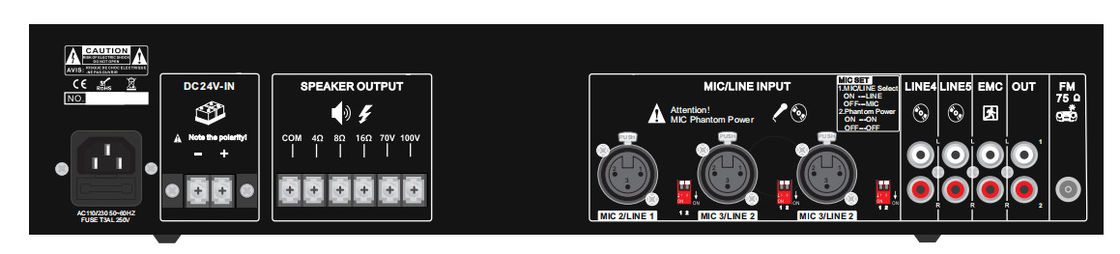

7.Mic1-3 and line 1-2 and telephone input. Mic1 of balanced XLR input with phantom power on rear panel. Mic2-3  microphone or line switchable unbalanced 6.3mm phone jack input. Line 1-2 input of RCA input and one RCA line
output. Telephone input with VOX priority and MOH (Music on Hold).
8.Volume control for Mic1-3, line1-2, Mp3/FM, bass/treble and master
9.With short-circuit, clip, overload and high temp protection
10.AC 110 or 220V & 24V DC both operation system
11.With 19” rack mount ears





Specification


Model

FA-60EC

FA-120EC

FA-240EC

FA-350EC

FA-500EC

Description

Public Address System 60W Mixer Amplifier

Rated Power Output

60W

120w

240w

350w

60W

Speaker Output

70V, 100V and 4-16Ω

Input

Mic1-3: 600 ohms(Ω) 5-8 mV, unbalanced, Line1-2: 10k ohms(Ω) 150-470 mV,
unbalanced

Frequency Response

60-15KHz

THD

<0.5% at 1kHz, 1/3 rated power

S/N Ratio

Line: 85 dB , MIC: >72 dB

Protection

High temp, short circuit, overload protection

Power Supply

AC230V or DC24V, 50-60Hz

Power Consumption

80W

150W

310W

450W

650W

Dimension

484(W)×366(D)×88(H)mm

Packaging:

484W)×335(D)×88(H)mm

Gross Weight

6.1kg

6.6kg

9.6kg

11.9kg

13.7kg

Warranty

1 year






Installation Instruction

19in Rack Mount PA System Amplifier 350W Power Amplifier For School 1





Exhibition


19in Rack Mount PA System Amplifier 350W Power Amplifier For School 2

19in Rack Mount PA System Amplifier 350W Power Amplifier For School 3





Certifications


19in Rack Mount PA System Amplifier 350W Power Amplifier For School 4

19in Rack Mount PA System Amplifier 350W Power Amplifier For School 5

19in Rack Mount PA System Amplifier 350W Power Amplifier For School 6





FAQ



1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
