Professional PA Mixer Amp 60W Audio Amplifier High Temp Resistance

60W Power Mixer Pa Amplifier Professional Amplifiers And Speakers Power Mixer

Features

1. Compact mini size public address amplifier
2. Ideal for classroom sound system use
3. Built-in 100V/70V transformer technology
4. Tabletop amplifier with Mp3 player, FM radio & blue tooth
5. Rate power output at 30W, 60W to 120W. Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms
6. Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
7. LED indicators for power, clip, protect and signal

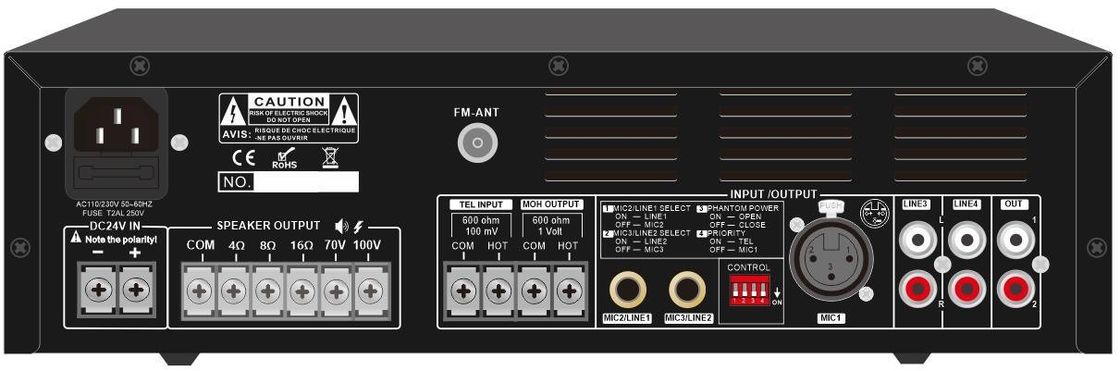

8. Mic1-3 and line 1-2 and telephone input. Mic1 of balanced XLR input with phantom power on rear panel. Mic2-3
9. microphone or line switchable unbalanced 6.3mm phone jack input. Line 1-2 input of RCA input and one RCA line
10. output. Telephone input with VOX priority and MOH (Music on Hold).
11. Volume control for Mic1-3, line1-2, Mp3/FM, bass/treble and master
12. With short-circuit, clip, overload and high temp protection
13. AC220V or 115V & 24V DC both operation system

Specification

Model	FA-30E	FA-60E	FA-120E
Description	Public Address System 60W Mixer Amplifier
Rated Power Output	30W	60w	120w
Speaker Output	70V, 100V and 4- 16Ω
Input	Mic1-3: 600ohms(Ω)5-8 mV,unbalanced, Line1-2: 10kohms(Ω)mV, unbalanced
Frequency Response	60- 15KHz
THD	<0 .5%at1kHz,1/3rated power
S/N Ratio	Line:85dB,MIC:>72dB
Protection	High temp, short circuit, overload protection
Power Supply	AC230V or DC24V, 50-60Hz
Power Consumption	45W	100W	200W
Dimension	300(W)×275(D)×88(H)mm
Gross Weight	5 5kg	6 6kg	7 8kg
Warranty	3 years
