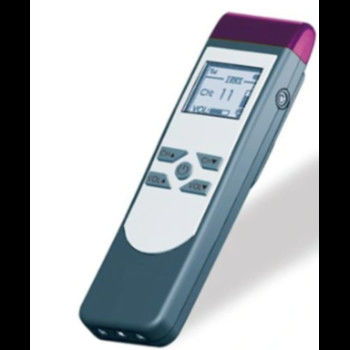

Interpretation system IR Wireless 12 Channel Receiver ir radiator

Interpretation system IR Wireless 12 Channel Receiver ir radiator
Interpretation system IR Wireless 12 Channel Receiver ir radiator

Large Image :  Interpretation system IR Wireless 12 Channel Receiver ir radiator

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Model Number: FTS-802
Payment & Shipping Terms:
Minimum Order Quantity: 1pieces
Price: USD76.32~85.32
Packaging Details: 290(W)*198(D)*90(H)mm
Delivery Time: 5-8work days
Supply Ability: 1000cottons

Interpretation system IR Wireless 12 Channel Receiver ir radiator

Description
Description: IR Wireless 12 Channel Transmitter Frequency Response: 100-14KHz
Frequency Band: 1.7-4.0MHz Distortion: <0.5%
Dimension: 290(W)*198(D)*90(H)mm Warranty: 3years
Weight: 0.1Kg Power Consumption: 60mW





Feature:

  • Main equipment of language distribution and simultaneous interpretation system.
  • 12 languages (1 ground and 11 international) simultaneous translation and distribution system.
  • Ideal for international summit meeting, religious meeting and hotel rental use.
  • The spokesman's speech in different languages will be send to the interpreter unit by the IR transmitter, the translator will selected the language to translate by the interpreter unit, the translated speech will be simultaneously send back to the IR transmitter. This transmitter will receive 12 different voice inputs then generate the infrared wireless signal through the 12 different outputs to be radiated by the IR radiator, while the attendant with IR receiver could receive different translated language by selecting different receiving channels.
  • Stable strong signal for accurate wireless infrared transmission system to prevent interference.
  • One IR receiver capable of receive 12 languages by select different channels.
  • The system capacity of connection more than 5,000 IR receivers.
  • Pocket mini size for easy handheld use.
  • With power switch, volume control and channel selector.
  • With IR receiver cover to prevent dust and filter lighting.
  • With earphone input to listen the different translations.
  • The LCD could display the selected channel, the battery status and signal strength.
  • Powered by the built-in rechargeable lithium battery. Full working time of 8 hours and 32 hours of standby.
  • With battery protection cover lock only to be opened by the supplied key.
  • With battery charge box to charge the IR receive directly before the use.
  • Earphone TS-705 is already included. Earphone TS-706 is optional to buy to work with the IR receiver.
  •

 Specifications:
Model FTS-803
Description IR Wireless 12 Channel Receiver
Modulation Way FM modulation
Frequency Synthesis Digital PLL
Frequency Band 1.7-4.0MHz
Frequency Response 100-14KHz
Frequency Stability 10ppm
Pre-emphasis 75μSec.
Distortion <0.5%
Channel Separation >55dBA
Control Power switch, volume and channel selector
Input 3.5mm earphone input
Display LCD to display channel, battery and signal strength
Power Consumption 60mW
Operation Power 4.5V built-in rechargeable battery
Dimension 290(W)×198(D)×90(H)mm
Weight 0.1kg
  • Interpretation system IR Wireless 12 Channel Receiver ir radiator 0Interpretation system IR Wireless 12 Channel Receiver ir radiator 1Interpretation system IR Wireless 12 Channel Receiver ir radiator 2Interpretation system IR Wireless 12 Channel Receiver ir radiator 3Interpretation system IR Wireless 12 Channel Receiver ir radiator 4


FAQ:
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.

  •
  •
