Product Details:
|
| Description: | IP Based Wall Mount Speaker | Built-in Amplifier: | 2X15W Watts Class D Amplifier |
|---|---|---|---|
| Protocol Support: | ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast) | Frequency Response: | 100-18KHz（±3dB） |
| S/N Ratio: | ≥85dB | Operation Temp: | -30℃ To +55℃ |
| Dimensions: | 257(W)×185(D)×170(H)mm | Weight: | 2.5kg |
| Highlight: | 18KHz Ip Public Address System,Wall Mount Ip Public Address System,Wall Mount Speaker |
||

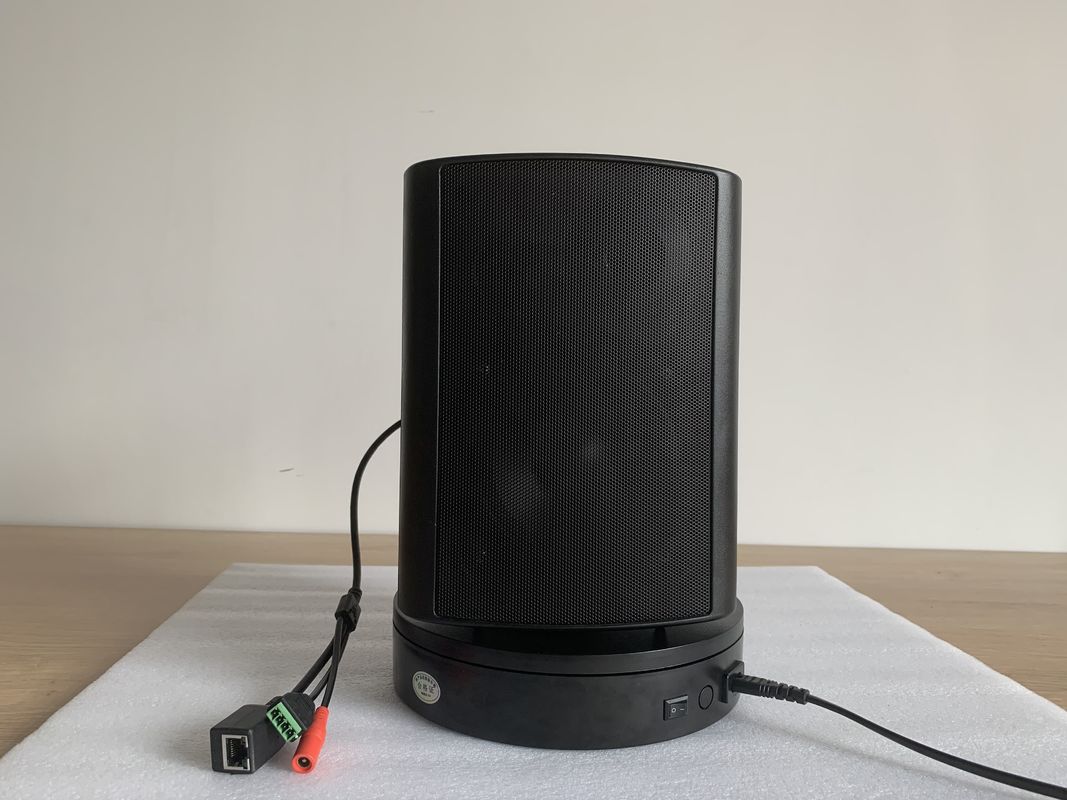

Ip Public Address System 2*15w Ip Network Wall Mount Ip Speakers
Description
The IP network Wall Mount Speaker is with TCP/IP protocol, enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and power supply, by this way, the layout cost will be much decreased compare to analog PA system.
The wall mount speaker is designed with 5” two way wall mount speaker with 2X15W class-D amplifier and stereo output, keep good sound quality by hard decoder.
The IP speaker kits is designed as an economy IP system solution, include one active speaker+ one passive speaker both in 15W RMS , with a low cost to build up the IP network speaker system
There is one contact input and one contact output to interactive with third party system. The remote paging microphone
FIP-900TM enables to make announcement over individual IP speaker, group speakers over network.
Features
Specification
| Model | FIP-915E |
| Description | IP Based Wall Mount Speaker |
| Power Output (1KHz@-3dB) | 15 Watts, MAX 20 Watts |
| Built-in Amplifier | 2X15W Watts Class D amplifier |
| Speaker Unit | 5” woofer+1.5” tweeter |
| Network I/F | 10/100Mbps |
| Protocol | ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast) |
| Audio Format | MP3, wav |
| Audio Quality | 16digit stereo CD level |
| Sampling Rate | 8K~48K |
| Bit Rate | 8K~512Kbps |
| Sensitivity | 92dB/1W/1M |
| S/N Ratio | ≧85dB |
| THD | ≦0.1% |
| Frequency Response | 100-18KHz(±3dB) |
| Connector | One RJ45 port for existing LAN/WAN & internet One control input, 0V, short circuit contact One control output, 0V, short circuit contact One DC12V input |
| Power Input | DC 12V |
| Operation Temp | ‘-30℃ to +55℃ |
| Dimension | 257(W)×185(D)×170(H)mm |
| Bracket | U-Shaped wall mount bracket |
| Material | ABS cabinet and steel grille |
| Weight | 2.5kg |
FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 12 months for speaker.
4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.
6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
