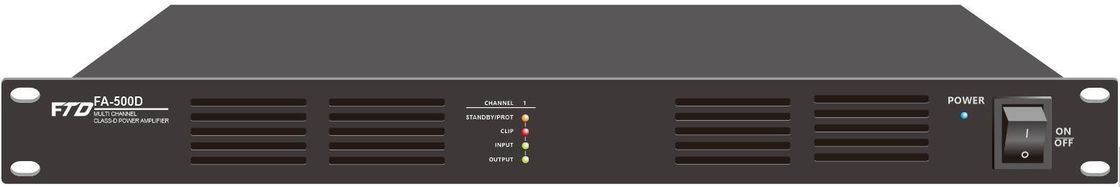

FTD Digital Class D Single Channel Power Amplifier 500W AC230V

Model	FA-500D
Description	Class-D Single Channel Power Amplifier
Rated Power Output	500W
Rated Power Output	4-16Ω & 100V
Frequency Response	L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB)
Input	0.775V, 0dBu, balanced phoenix connector by four channels
Input Impedance	10KΩ
THD	<0.1% (1KHz/-3dBv, 100W)
S/N Ratio	>80dB
Crosstalk	>60dB, 1KHz, Max output
Power Consumption	550W
Power Supply	AC input switchable between 115V & 230V, 50-60Hz
Dimension	482(W)x420(D)x44(H) mm
Weight	5.5KG

 Features:

Switching power technology digital power amplifier
Class-D PA power amplifier of minimum power consumption
Less rack space and less heat generation
Single channel power amplifier into 19” rack mount unit
Rated power output at 350W
Speaker outputs 4-16Ω/100V
Balanced XLR input by phoenix connector
Each input with separate gain control.
Each channel with high-cut filter.
Built-in auto standby feature to save power consumption
Separate indicators for protection, clip, input and output
Complete short circuit, overload, high temp, clip and DC protection
Wide AC input switchable between 115V and 230V
24V DC input as option at order request.
