1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol

Certification
China Guangzhou FTD Audio Electronics Limited certification
China Guangzhou FTD Audio Electronics Limited certification
I'm Online Chat Now

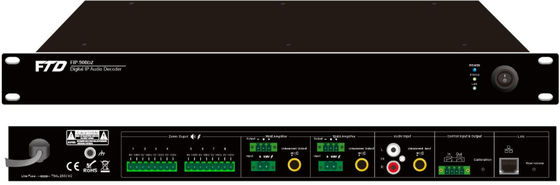

1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol

1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol
1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol

Large Image :  1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Certification: CE
Model Number: FIP-900DZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-15 work days
Payment Terms: T/T
Supply Ability: 500PCS Per Month

1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol

Description
Weight: 3.2kg Color: Black
Power Consumption: 5W Power Supply: AC230V Or 110V
Frequency Response: 20Hz-20KHz S/N Ratio: ≥90dB
High Light:

1U Network Audio Adapter

,

IP Network Audio Adapter AC230V

,

8 zone audio adapter IGMP

8 Zone IP Network Audio Adapter


Product Description


1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol 0
  • Product performance description

  •

The IP network 8 zone audio adapter with decoder is the main equipment of the IP network PA system. It is built-in decoder which can decode the network audio signal into analog to feed in analog amplifier. It is also built-in an eight zone speaker selector can split one amplifier into 8 zones to power different loudspeaker zones.
The IP network 8 zone audio adapter with decoder is ideal sound system solution for multiple room sound system, it could be set up over existing network LAN/WAN and internet work, support more than 300 decoders online at the same time. There are eight zone contact outputs to third party for zone status monitoring. It is designed in 1U height of rack mount. Program controllable power supply of AC 230V or 110V.

1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol 1


Product Features


The IP network audio adapter with decoder is built-in 8 zone speaker selector.
The IP network 8 zone audio adapter with decoder can split one PA 100 volt amplifier into 8 loudspeaker zones.
Support connect one host amplifier, one spare amplifier.
The system could be set up over existing network, non dedicated network is needed.
System capacity of 300 adapters online simultaneously.
Eight zone contact outputs for zone status monitoring.
1U height of rack mount design.
Support LAN/WAN and Internet network.
Network data delay of less than 20 milliseconds.
Program controllable power supply of AC 230V or 110V



Specification



Model FIP-900DZ
Description IP Network 8 Zone Audio Adapter
Power Supply AC230V or 110V
Power Consumption 5W
Network Protocol TCP, UDP, ARP, ICMP, IGMP
Network Speed 10/100Mbps
Audio Format Mp2, Mp3, PCM, ADPCM
Audio Sampling 8KHz-44.1KHz, 16 bits, 8K-320Kbps
S/N Ratio ≥90dB
Frequency Response 20Hz-20KHz
Data Delay 100 milliseconds

Connector
One aux input, one aux output, one contact in one contact out, one RJ45 input, one 100V power input, 8 zone 100V speaker outputs, one programmable
Dimensions 483×430×45mm
Weight 3.2kg





Certifications&Exhibition


1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol 2

1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol 3

1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol 4

1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol 5


Company Introduction


Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years' experience on Audio field. FTD audio will offer the professional products and service to each of partner and do a win win business with our partners!



1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol 6





Our Services & Strength



1.One year warranty after sales. if any problem happened under warranty , you can return to us and fix it.

2.Accept OEM and ODM order for our customers.

3. Stable quality with good quality control, quality is our life.

4. 7*24 hours quick response for technology support.

5. Various PA system product for one shop purchase.

6. System solution designed can be offered base on requirement.

7. Reasonable price for a win win business .



1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol 7





Packing&Shipping


1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol 8

1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol 9

1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol 10

1U Height 8 Zone IP Network Audio Adapter AC230V IGMP ARP ICMP Protocol 11
