Product Details:
|
| Weight: | 2kg | S/N Ratio: | ≥85dB |
|---|---|---|---|
| Audio Quality: | 16digit Stereo CD Level | Bit Rate: | 8K~512Kbps |
| Frequency Response: | 100-18KHz（±3dB） | Dimensions: | 200(Diameter)×100(Depth)mm |
| High Light: | FTD IP Network PA System,10w ceiling speaker IP System,Powered Ceiling Speaker Dia 20cm |
||
Product performance description
|
Model |
FIP-901POE |
|
Description |
IP Based POE Ceiling Speaker |
|
Power Output |
10Watts RMS & 15W Watts Max (1KHz@-3dB) |
|
Built-in Amplifier |
15W Class D amplifier |
|
Network I/F |
10/100Mbps |
|
Protocol |
ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast) |
|
Audio Format |
MP3/MP2 |
|
Audio Quality |
16digit stereo CD level |
|
Sampling Rate |
8K~48K |
|
Bit Rate |
8K~512Kbps |
|
Sensitivity |
92dB/1W/1M |
|
S/N Ratio |
≧85dB |
|
THD |
≦0.1% |
|
Frequency Response |
100-18KHz(±3dB) |
|

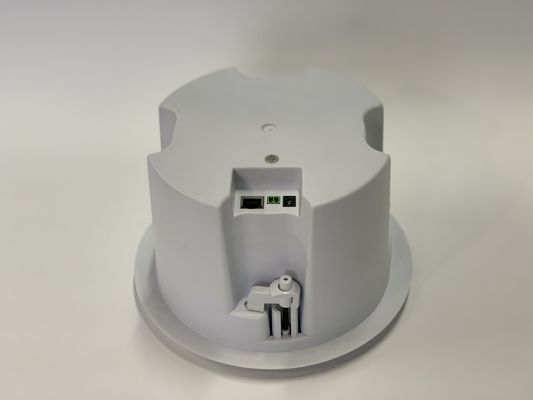

Connector |
One RJ45 port for existing LAN/WAN & internet |
|
Power Input |
POE 802.3af or POE 802.3at & DC 12V |
|
Operation Temp |
-30 to 55℃ |
|
Dimension |
200(Diameter)×100(Depth)mm |
|
Cutout Size |
175mm |
|
Weight |
1.2kg |
System Diagram:
Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years' experience on Audio field. FTD audio will offer the professional products and service to each of partner and do a win win business with our partners!
Our Services & Strength
1.One year warranty after sales. if any problem happened under warranty , you can return to us and fix it.
2.Accept OEM and ODM order for our customers.
3. Stable quality with good quality control, quality is our life.
4. 7*24 hours quick response for technology support.
5. Various PA system product for one shop purchase.
6. System solution designed can be offered base on requirement.
7. Reasonable price for a win win business .
Contact Person: Mr. Jack Tan
