Rechargeable Wireless Conference System UHF Master Controller Rechargeable LIPO Battery



•

• Product performance description

•

Wireless Conference System Controller, capacity of 260 units, 5 units could be used simultaneously, first-in first out, chairman mode discussion mode, built-in recorder and MP3 Player.



Features



• Simple operation UHF wireless conference system.
• Minimum cable wiring to save cable layout cost.
• Minimum cable connection ideal for rental use or portable conference system.
• Basic discussion conference system or audio conference system.
• Economy wireless conference system and meeting system.
• System capacity of 256 delegate units.

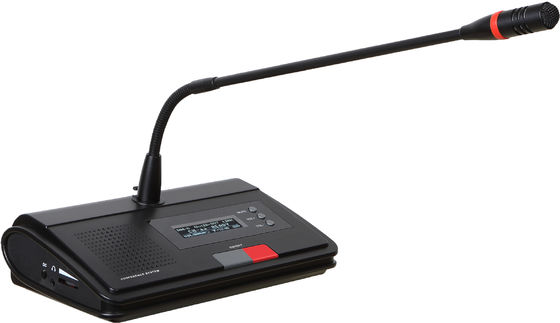

• Chairman unit with priority over delegate units.
• Chairman unit and delegate unit built-in rechargeable LIPO battery.
• Several meeting modes: Limit (1/2/3/4), First in first out (1/2/3/4), Chairman Only and free discussion modes.
• 5 delegate microphones can be turned on at the same time.
• Microphones can be operated on the built-in rechargeable lithium battery.
• Battery working time of 16 hours and standby time of 60 hours.
• Multi-channel high bandwidth and intermediate band frequency selective filtering to avoid any interference.
• Built-in feedback suppressor to decrease feedback and noise effectively.
• Built-in noise deletion circuit and TONE-LOCK system to make sure the system has strong anti-jamming function.
• Operation distance up to 300 meters and coverage up to 4,000 Square meters.

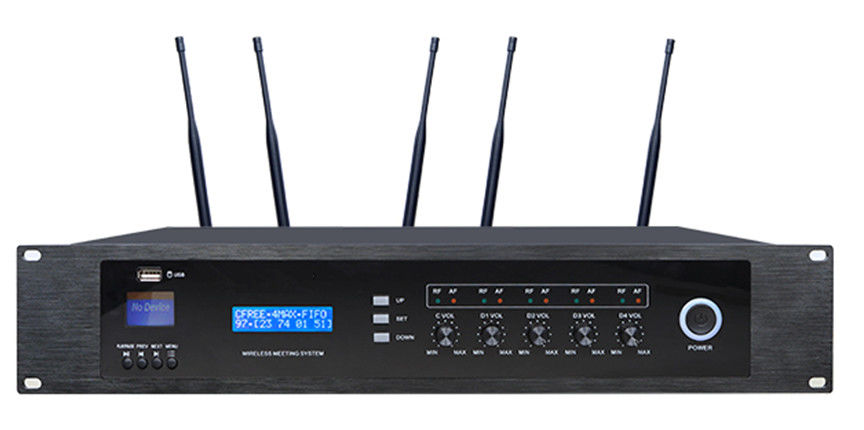

• Separate volume control for 5 channels on master controller front panel.
• Separate output level meter for each 5 channels for direct visual monitoring.
• Optional v auto-track video tracking function.
• UHF wireless conference system master control is powered by DC12V.
• Master control With unbalanced 6.3mm jack output and balanced XLR output to sound reinforcement system.
• Video tracking function need external equipment and cameras.



Specification





Model		WCS-400
Description		UHF Wireless Conference System Master Controller
Audio	Transmission Way	UHF wireless one way transmission by oscillation PLL technology
	Channel Qty	5 channels (one for chairman Mic and four for delegate Mics)
	Frequency Range	740MHz-790MHz @ ±10PPM stability
	Modulation Mode	FM
	Receive Sensitivity	-100dBM
	Output Level	Balanced XLR output: 0-600mV, unbalanced Jack output: 0-300mV
	Frequency Response	60Hz-16KHz
	S N Ratio	>105dB
	THD	<0.5%
	Communication Distance	300 meters
Control	Transmission Way	UHF wireless two way transmission
	Channel Qty	16
	Frequency Range	740MHz-790MHz
	Modulation Mode	FSK
	Receive Sensitivity	-100dBM
	Transmitted Power	+6dBm (adjustable)
	Frequency Deviation	<0.002
	Communication Rate	100KBPS
	Signal Coverage	4,000 Square meters
Mechanical	Power Supply	DC12V-15V, >=1A
	Power Consumption	< 7W
	Operation Temperature	-20ºC to +55ºC
	Dimension	485(W) x 355(D) x 100(H)mm
	Weight	7.2 kg
