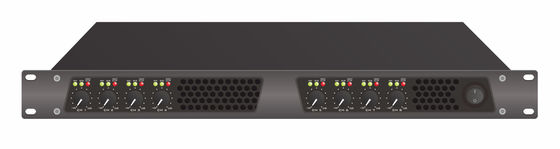

ODM Stage DSP Professional Power Amplifier 4*900W

ODM Stage DSP Professional Power Amplifier 4*900W
ODM Stage DSP Professional Power Amplifier 4*900W ODM Stage DSP Professional Power Amplifier 4*900W

Large Image :  ODM Stage DSP Professional Power Amplifier 4*900W

Product Details:
Place of Origin: Guangzhou China
Brand Name: FTD
Certification: CE
Model Number: FDP-4900
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: 613~617
Packaging Details: carton
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 1000 Piece/Pieces per Month
Contact Now

ODM Stage DSP Professional Power Amplifier 4*900W

Description
Amplifier Class: D-Class Net Weight: 10.5kg
Dimension: 47mmX483mmX448mm Crosstalk: >75dB
Shell Material: Metal Weight: 10.5kg
Highlight:

Professional Power Amplifier 4*900W

,

Stage dsp power amplifier

,

professional amplifier ODM

Black 4*900W DSP Power Amplifier Professional Power Amplifier For Stage


Product Description
ODM Stage DSP Professional Power Amplifier 4*900W 0

Features:

1.professional power amplifier build in DSP with a better sound 2.Ideal for life performance, permanent installation and sound reinforcement system. 3.Switching power technology digital Class-D level power amplifier. 4.Green technology amplifier by 85% efficiency of less power consumption, higher power output, less heat generation and longer life span. 5.With PWM special power circuit to ensure excellent cooling system. 6.19” universal rack mount type in 1U height. 7.Minimum weight less than 10kgs without transformer technology. 8.Support stereo output at 8Ω, 4Ω to 2Ω. 9.Rated power output 4*900W@8Ω 10.Input by balanced XLR male connector of 2 channels. 11.Link by balanced XLR female connector of 2 channels. 12.Output by balanced Speakon female connector of 4 channels. 13.Complete protection include clip, high temp, overload and short circuit. 14.With four fans for cooling down the internal temperature. 15.Visual indicator of output level meter, power, protection and clip.
16.Comes with 5 years qualitywarranty

Description:

The 19” rack mount 1RU height design is suitable for universal permanent installation of any sound reinforcement system. The digital Class-D technology also bring the lighter amplifier of less rack space consumption into true, so it is very useful and cost-effective amplifier for installer and system contractor. The FDP-4900D four channel class-D professional power amplifier rated power output is 4*900W@8Ω, build in DSP processor, so it is design for various installation applications like for government building, stadium, theater and cinema, capacity of each unit maximum connection of four professional sound low impedance loudspeakers.
Specification
Model
FDP-4900D
Description
Four Channel Class-D Professional Power Amplifier with DSP
Amplifier Class
D-Class
Power Output RMS Stereo
4*900W@ 8Ω
4*1800W@ 4Ω
4*2340W@ 2Ω
Efficiency
>85%
Frequency Response
20Hz-20kHz (±0.3dB)@1W, 8Ω
IMD-SMPTE
<0.3%
THD @ 1kHz
<0.3%, 1dB below clip
Damping Factor @ 8Ω
>800
Slew Rate
50V/µs
Signal/Noise Ratio
>105dB
Input Sensitivity
1V
Voltage Gain
40dB
Input Impedance
20KΩ (bal.), 10KΩ (unbal.)
Crosstalk
>75dB
Connector
Input by XLR male, link by XLR female, output by Speakon female.
Protection
Clip, high temp, overload and short circuit
Cooling
Temperature controlled fan
Power Supply
AC180V-240V (90V-120V),50-60Hz
Dimension
47mmX483mmX448mm
Net Weight
10.5kg
Installation Instructions
ODM Stage DSP Professional Power Amplifier 4*900W 1
Company Profile
ODM Stage DSP Professional Power Amplifier 4*900W 2
Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years′ experience on Audio field. FTD audio will offer the professional products and
service to each of partner and do a win win business with our partners!
Our main products are Public address system ,EVAC system,
IP PA system ,conference system ,PA amplifier and PA speaker.These system are all designed and produced by our engineer. We are accept OEM,ODM order.
Exhibition
ODM Stage DSP Professional Power Amplifier 4*900W 3
ODM Stage DSP Professional Power Amplifier 4*900W 4
Certifications
ODM Stage DSP Professional Power Amplifier 4*900W 5
ODM Stage DSP Professional Power Amplifier 4*900W 6
ODM Stage DSP Professional Power Amplifier 4*900W 7
FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
Shipment
